Case study
Brake Package & Caliper Mounting
Scanning existing hub and upright geometry to design a caliper mounting bracket that fits the brake package around what was already there.
- 3D Scanning
- Geometry Extraction
- CAD Design
- Fitment
The problem
A brake package needed to mount to hardware it was never designed for. There were no drawings for the existing hub and upright, and the space around the disc and wheel was limited, so the bracket had to be designed around geometry that could only be measured off the car.
The approach
We scanned the existing components and pulled out the parts that mattered: mounting hole centres, the disc face and axis, and the surfaces the bracket could reference. With those in CAD we could see the available envelope and design a bracket to suit, checking clearance to the wheel and surrounding components as the design developed.
The result

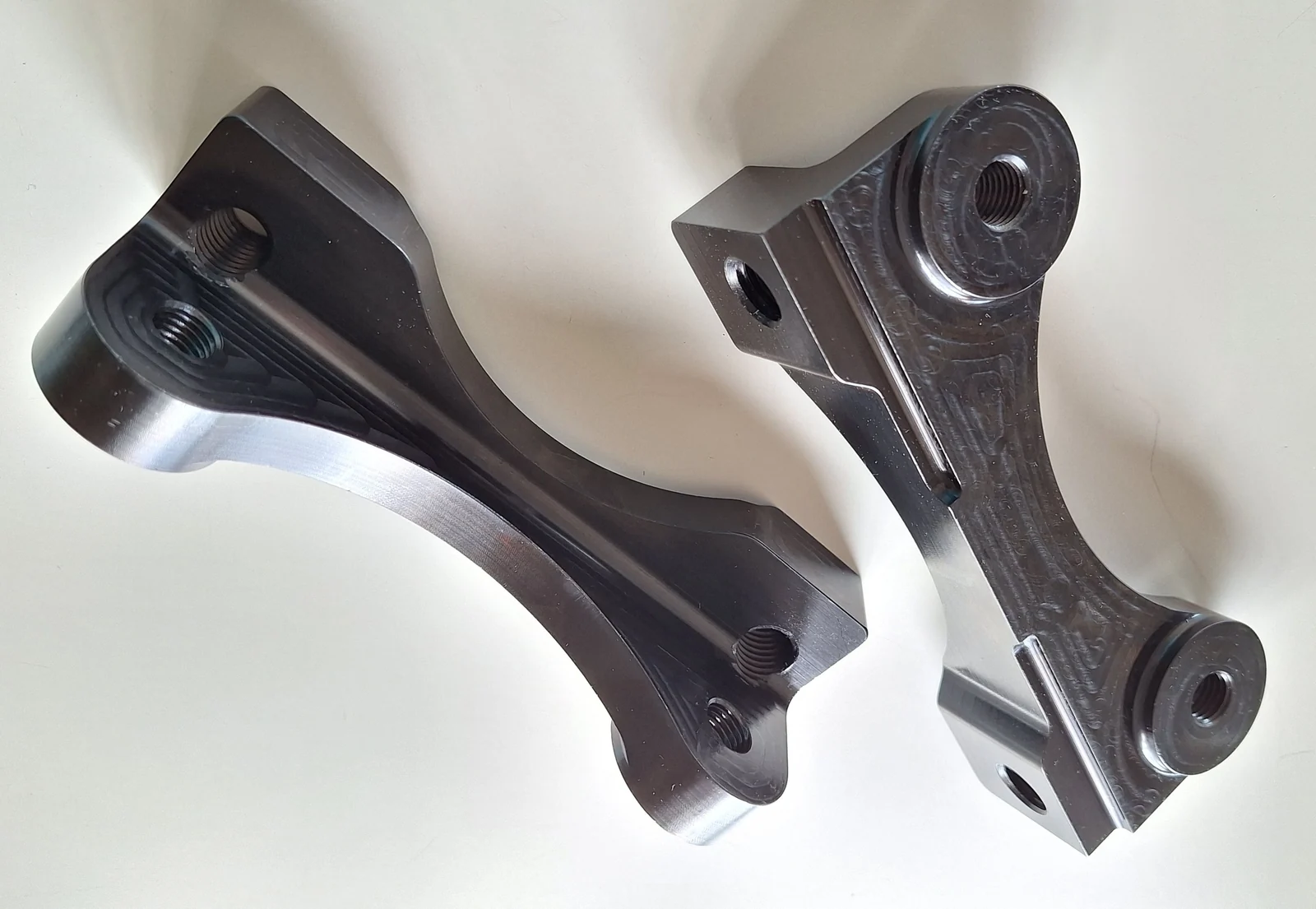

A bracket design referenced to the real geometry, with the fitment checked before anything was made, plus CAD suitable for producing the part.
Physical → Scan → CAD → Result
How the job ran
Real project photography and CAD views will replace these panels.
- 01
Physical
PhysicalCaliper, disc and upright as supplied, on the bench The existing components, with no drawings or CAD to work from.
- 02
Scan
ScanScan mesh of hub and upright assembly Captured as digital reference geometry.
- 03
CAD
CADCAD bracket modelled against extracted hole centres and disc axis Bracket designed to the extracted mounting geometry.
- 04
Result

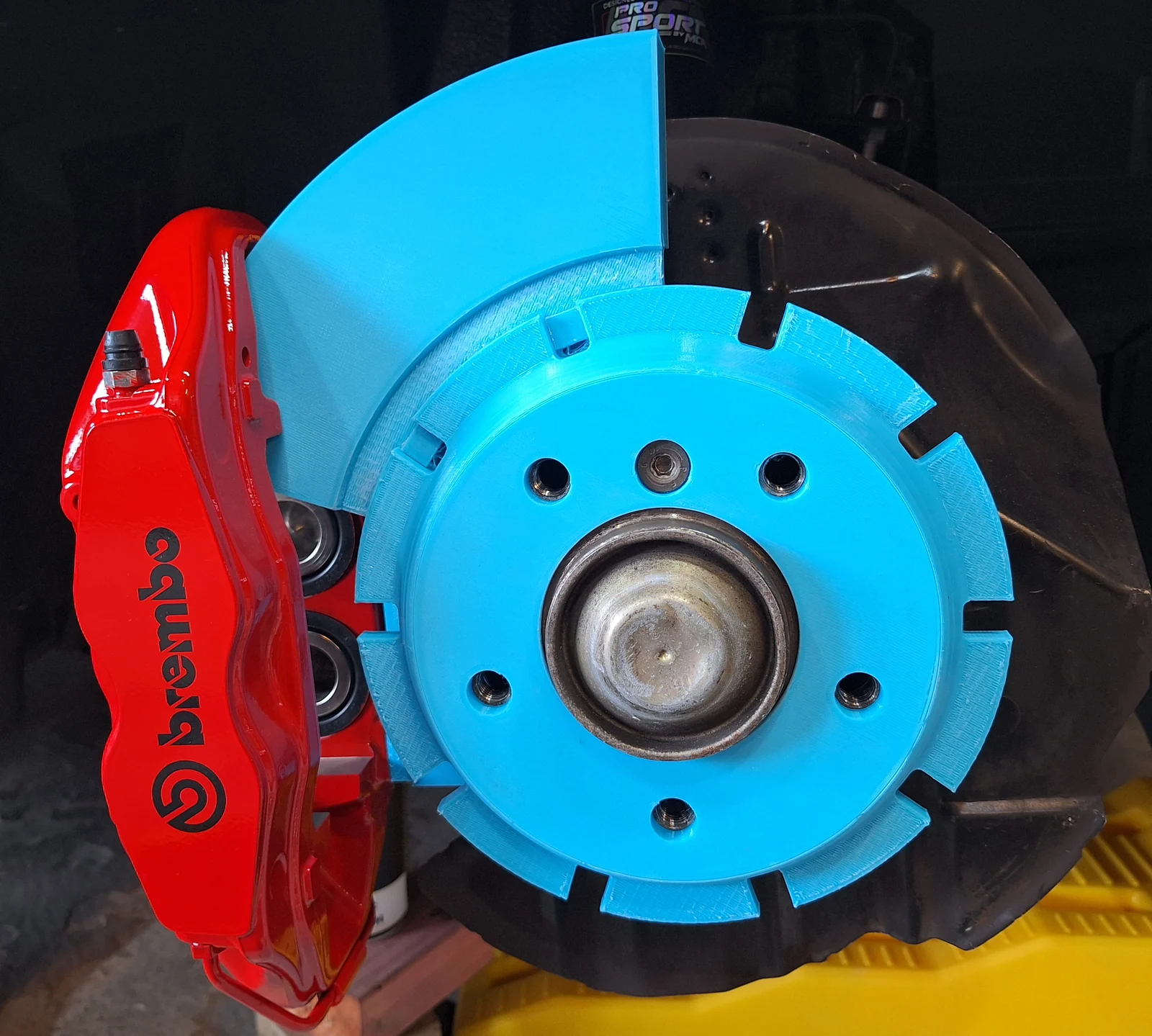

ResultBracket fitted, caliper positioned over the disc Fitment confirmed against the real assembly.
